Building a Silent Passive Water-Cooled PC with a RTX 5080

I love a good experiment. Most of us just buy a case, slap some fans in, and call it a day. It works, but it's boring. Sometimes, you just want to see how far you can push physics.

That is exactly what the team at Billet Labs did with their latest project. They wanted a gaming rig with zero noise. No fans. No buzzing. Just pure, silent performance.

It sounds like a dream. But reality is often much harder than a CAD design. Let's see if this silent dream holds up under pressure.

Why silence is so hard to achieve

Felix from Billet Labs is no stranger to wild ideas. You might remember his Raddy project. It was a massive cast-iron radiator beast. It looked cool, but it wasn't perfect. The pump caused bubbles and the whole thing was louder than he wanted.

He learned a lot from that build. The main lesson? Moving parts usually mean noise. Even a tiny fan adds up. He wanted to strip all of that away for his next attempt.

He decided to use a convection chimney design. The idea is simple. Heat rises. If you stack enough radiators, the hot air will naturally pull cool air from the bottom. It turns the whole PC into a giant vacuum for heat.

This approach isn't new in industrial design. But doing it in a home office? That is a different beast entirely. It requires a lot of copper and a very specific layout to work right.

Putting the beast together

The build relies on some serious hardware. We are talking about an AMD Ryzen 7 9800X3D processor and an Nvidia GeForce RTX 5080. These parts run hot. Keeping them cool without fans is a bold move.

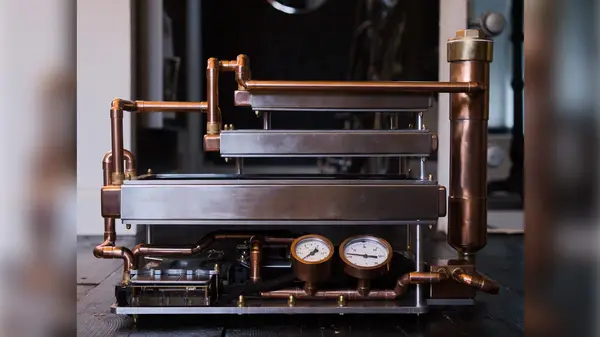

They mounted everything on an 8mm aluminum plate. The plumbing had to be perfect. Any leak or air bubble would ruin the whole flow. It looks like a piece of modern art, but it's really a complex science project.

The radiators are stacked in three stages. The smallest sits at the bottom. The largest sits at the top. This creates that chimney effect to move the air. It's a beautiful sight, but does it keep the silicon from melting?

Testing started slow. They booted up Windows 11 and checked the idle temps. It was quiet. So quiet, you could hear a pin drop. But then, they started the real games. They fired up Halo 3 and Cyberpunk 2077 to see if the heat would win.

The RTX 5080 held its own. It didn't throttle during gaming. But the CPU was a different story. It hit 95 degrees Celsius. That is right on the edge of its limit. It was struggling.

The physics of heat and air

The core problem here is heat density. A 9800X3D puts out a lot of heat in a tiny space. Passive cooling relies on the air moving fast enough to carry that heat away. Without a fan to force the air, you are at the mercy of the room temperature.

The pump speed was set to 80% to keep things stable. Even then, the water hit 60 degrees Celsius under a heavy load. That is the limit for the hardware. If it goes higher, the system risks damage.

The Aorus Pro B850 motherboard also had to be tweaked. They had to disable its own cooling fans just to keep the noise floor at zero. It shows how even one tiny fan can change the whole sound profile of a room.

When they ran Cinebench and FurMark at the same time, the system pulled over 450W. That is a massive amount of energy to dump into a passive loop. The system just couldn't keep up with that much power.

What comes next for silent rigs?

This build proves one thing. Purely passive water cooling is tough for high-end parts. You can do it for light tasks, but modern gaming needs more. The laws of heat transfer are hard to break.

Felix plans to add a single 120mm fan soon. It's a small change. It will push air up and through the stack. That should make a huge difference. Sometimes, you only need a little push to get the air moving.

Is this the end of the experiment? Not at all. It shows that we can get very close to silence with the right design. We just need to be smart about how we manage the airflow.

Quick questions answered

Is the PC really silent? Yes. Without fans, the only sound comes from the pump. If tuned right, it is basically invisible to your ears.

Why did the CPU get so hot? The 9800X3D is a power-hungry chip. Passive cooling cannot move enough air to keep up with its peak power draw.

Can I build this at home? You could, but it is hard. You need to be very careful with plumbing and thermal management to avoid killing your parts.

What is a convection chimney? It uses the natural rise of hot air to pull cool air through the radiators. It works like a fireplace flue.

Is the RTX 5080 safe at these temps? It didn't throttle, so it was fine. But running at the edge of thermal limits isn't great for long-term health.
