Testing Nvidia RTX Mega Geometry for Better Ray Tracing Performance

I remember when real-time ray tracing felt like a pipe dream reserved for high-end movie studios. Back then, we settled for flat, fake lighting that never quite looked right in motion. The industry promised us a future of light bouncing off every surface just like it does in the real world.

That future arrived in bits and pieces, often at a massive cost to our hardware. Every time a new game pushed for full path tracing, I watched my frame rates tank and my VRAM usage skyrocket. It felt like we were hitting a wall where better visuals meant unplayable performance.

Now, we have a new tool to fix this mess. Nvidia's RTX Mega Geometry tech aims to change the math of how we render complex scenes. I spent time digging into the numbers to see if it delivers on those big promises for smoother, sharper graphics.

The evolution of ray tracing and geometry

Back in 2018, Nvidia launched the GeForce RTX line with the Turing architecture. This was the moment hardware-accelerated ray tracing became a reality for PC gamers. Battlefield V was the first big title to show us what this looked like, though it only handled reflections. It was a start, but it was far from the full picture.

By 2019, Control pushed the limits further with multiple ray-traced effects. We saw shadows, reflections, and indirect lighting working together in real time. Still, these were hybrid solutions. They mixed traditional rendering with ray tracing to keep performance somewhat stable for the average user.

Today, we have full path tracing in games like Cyberpunk 2077. Unlike the old hybrid methods, path tracing follows light paths just like a camera does in a movie. It samples rays to create a scene that looks photorealistic. This process is heavy, but it is the gold standard for lighting.

The problem is that our geometry has become incredibly dense. Engines like Unreal Engine 5 use virtualized geometry systems to pack millions of triangles into a single frame. Trying to ray trace all of that data using old methods is a nightmare for the GPU. It puts a massive strain on the system, often forcing developers to cut corners.

How RTX mega geometry changes the game

The Microsoft DXR API was built years ago. It was never meant to handle the massive triangle counts we see in modern games. In the old way of doing things, geometry lives in a Bounding Volume Hierarchy, or BVH. When scenes move or change, the GPU has to rebuild this structure constantly.

This rebuilding process eats up CPU cycles and causes performance drops. Developers usually fix this by using proxy meshes. These are low-detail versions of the real objects. They work for simple shadows, but they look terrible when you zoom in or look at reflections. You get artifacts and blocky, low-fidelity results.

RTX Mega Geometry is the fix. It adds a Cluster Acceleration Structure, or CLAS. This system batches up to 256 triangles at once. Because it is GPU-driven, it takes the load off the CPU. It builds the BVH much faster and keeps the level of detail high without the usual performance penalty.

I tested this in Alan Wake 2, which is a perfect test case. It uses heavy mesh shading and path tracing. In the 1.2.8 update, Remedy added support for this tech. By using it on existing assets, I saw VRAM savings of about 1 GB. I also saw a 13 percent jump in performance at 4K resolution.

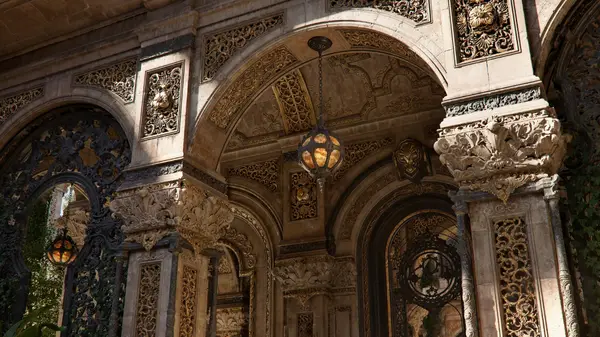

The RTX Bonsai Diorama Demo lets you toggle this feature on and off. It is a great way to see the impact. When you turn it on, the geometry stays crisp and sharp even as the scene moves. When you turn it off, the system struggles to keep up with the same detail levels.

This tech works on older RTX cards, but the RTX 50-series is where it really shines. The Blackwell architecture includes specific hardware for this. It has a triangle cluster intersection engine and a compression engine. These units double the intersection rate of older cards while keeping VRAM usage low.

Technical specs and hardware requirements

At the heart of this technology is the way the GPU handles geometry clusters. By grouping triangles, the hardware can perform intersection tests more efficiently. This is vital when you are dealing with millions of polygons. Traditional ray tracing would choke on this amount of data.

The compression engine is equally important. It shrinks the footprint of the geometry data in memory. This is why we see such big VRAM savings. For anyone who has hit memory limits while testing hard drive memory or checking the space testing in computer laptop setups, this is a huge win.

Testing to see memory space of a laptop during a heavy session in Alan Wake 2 confirms these findings. With Mega Geometry, the card doesn't need to load as much raw data into the VRAM. It keeps the important details ready for the RT cores to process immediately.

If you are using an older card, you can still use the feature, but you won't get the same efficiency as the newer hardware. The fourth-gen RT cores are the ones doing the heavy lifting. They are specifically tuned to handle these clusters without breaking a sweat.

The future of photorealistic rendering

We are moving toward a world where the difference between a game and a movie is nearly invisible. RTX Mega Geometry is a massive step on that path. It removes the need for those ugly proxy meshes that have plagued our games for years.

Developers now have more room to build dense, beautiful worlds. They don't have to sacrifice lighting quality to keep the frame rate up. This will likely become a standard part of game engine pipelines in the next few years. It is simply too efficient to ignore.

I expect we will see more engines adopt similar cluster-based approaches. Once the hardware catches up, the days of low-fidelity reflections and fake, static shadows will be behind us. We are finally getting the tech we were promised back in 2018.

Frequently asked questions

Does RTX Mega Geometry work on all RTX cards? It is supported on RTX 20-series and newer cards, but the RTX 50-series hardware handles it much better due to specific engines built for this task.

Will this feature make my games look better? Yes, it allows for higher geometric detail in ray-traced scenes, which means sharper shadows and more realistic reflections without the typical artifacts found in proxy meshes.

Does it help with performance? In my testing, I saw a 13 percent performance gain in Alan Wake 2, though your mileage may vary depending on the game and your specific hardware setup.

What is a Cluster Acceleration Structure? It is a way of grouping triangles into batches of 256. This makes it much easier for the GPU to process complex geometry during ray tracing.

Is this tech just for path tracing? While it is most useful for path tracing, the benefits of reduced VRAM usage and better BVH management apply to any game that uses heavy ray-traced effects.
